Multimedia Control Head -E380-
Multimedia Control Head -E380-

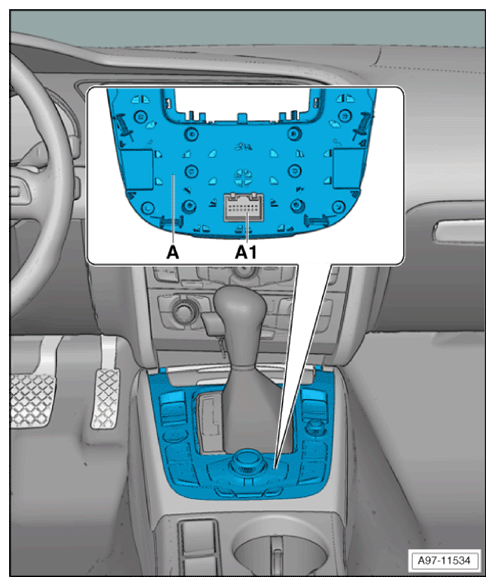

Component Location:
On The Center Console.
A
- Multimedia Control Head -E380-
A1
- 16-Pin Connector -T16c-
Courtesy of AUDI OF AMERICA, LLC
