Right Side Components

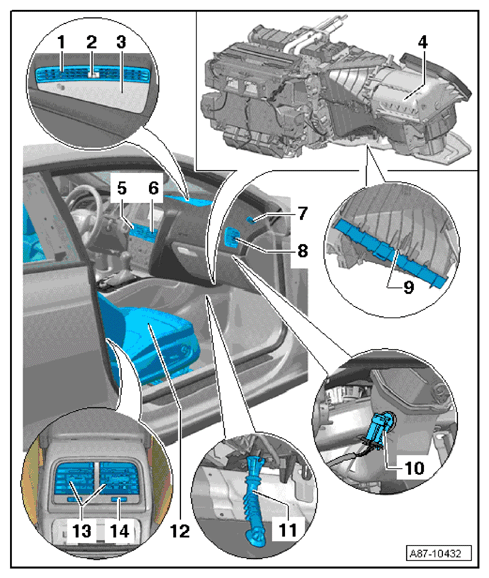

  1. Defroster vent/front window
  2. Sunlight Photo Sensor -G107-
  3. Vents for indirect ventilation/loudspeaker cover
    • Located center of the instrument panel
  4. A/C unit with evaporator and add-on components
  5. Left center instrument panel vent
  6. Right center instrument panel vent
  7. Defroster vent/right side window
  8. Instrument panel vent, right
  9. Dust and pollen filter (with or without activated charcoal filter element)
  10. Right Front Upper Body Outlet Temperature Sensor -G386-
    • Installed only in the comfort A/C system
  11. Right condensation water drain (front passenger side)
  12. Right seat (passenger seat) with seat heating and seat ventilation components
    • Right Front Seat Temperature Sensor -G345- with Front Passenger Seat Side Bolster Heater -Z33- and Front Passenger Seat Heating Element -Z8-
    • Right Front Heated Seat -Z46-
  13. Vent in center console, rear
  14. Rear Temperature Selection Potentiometer -G538-
    • Installed only in the comfort A/C system
G12766940Courtesy of AUDI OF AMERICA, LLC
