Electrical Components Locations & Connector End Views
›
Comp. LOC. Airbag
›
Passive Occupant Detection System
›

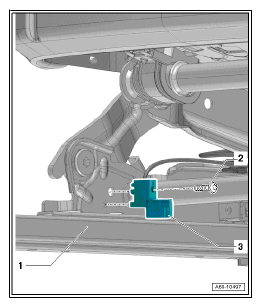

Seat Position Sensor Assembly Overview
Seat Position Sensor Assembly Overview
3
- Driver Seat Position Sensor -G553- and Front Passenger Seat
Position Sensor -G554-
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
