Hydraulic Control Unit

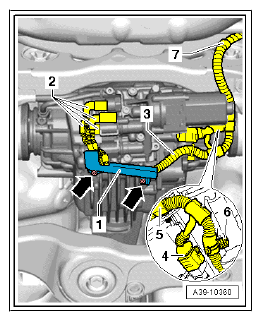

  1. 2  - Oil Pressure/Temperature Sensor -G437- and Oil Pressure/Temperature Sensor 2 -G640-; All Wheel Drive Clutch Valve -N445- and All Wheel Drive Clutch Valve 2 -N446-
  2. 4  - All Wheel Drive Pump -V415-
G12779315Courtesy of AUDI OF AMERICA, LLC
