Power Front Seat Component Overview

NOTE: The Overview Is Based On A Power Standard Front Seat. The Electrical And Electronic Components Are Similar On The Comfort Front Seat

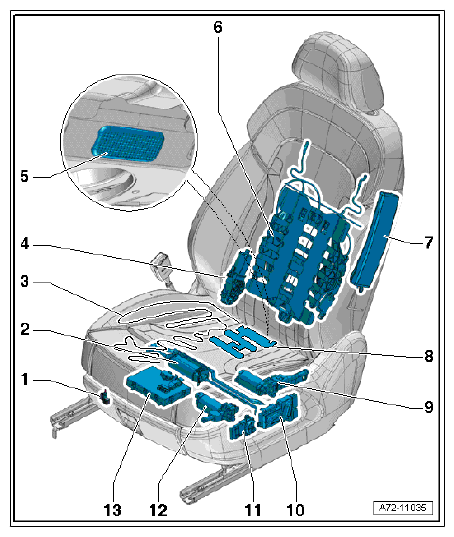

  1. Driver Seat Position Sensor -G553- and Front Passenger Seat Position Sensor -G554-
  2. Driver Seat Forward/Back Adjustment Motor -V28- and Front Passenger Seat Forward/Back Adjustment Motor -V31-
    • Driver Seat Forward/Back Adjustment Motor -V28- integrated with Driver Seat Forward/Back Adjustment Sensor -G227-
  3. Heating Elements → HEATED AND COOLED SEATS
    • The Heating Elements Are Bonded With The Upholstery

    The Heating Elements Are As Follows:

    • Driver Seat Heating Element -Z6- integrated with Driver Seat Side Bolster Heater -Z31- and Left Front Seat Temperature Sensor -G344-
    • Driver Backrest Heating Element -Z7-
    • Front Passenger Seat Heating Element -Z8- integrated with Front Passenger Seat Side Bolster Heater -Z33- and Right Front Seat Temperature Sensor -G345-
    • Front Passenger Backrest Heating Element -Z9-
    • Left Rear Seat Heating Element -Z10- integrated with Rear Seat Occupied Sensor (on Driver side) -G177- and Left Rear Heated Seat Temperature Sensor -G94-
    • Left Rear Backrest Heating Element -Z11-
    • Right Rear Seat Heating Element -Z12- integrated with Right Rear Heated Seat Temperature Sensor -G95- and Rear Seat Occupied Sensor (on front Passenger side) -G178-
    • Right Rear Backrest Heating Element -Z13-
  4. Driver Backrest Adjustment Motor -V45- and Front Passenger Backrest Adjustment Motor -V46-
    • Driver Backrest Adjustment Motor -V45- integrated with Driver Backrest Adjustment Sensor -G230-
  5. Footwell Lamp
  6. Four-Way Lumbar Support
    • Driver Seat Lumbar Support Curvature Adjustment Motor -V125-
      G12779329Courtesy of AUDI OF AMERICA, LLC
    • Driver Seat Lumbar Support Height Adjustment Motor -V129-
    • Front Passenger Seat Lumbar Support Curvature Adjustment Motor -V126-
    • Front passenger Seat Lumbar Support Height Adjustment Motor -V130-
  7. Driver Side Airbag Igniter -N199- and Front Passenger Side Airbag Igniter -N200-
  8. Front Passenger Seat Occupied Sensor -G128-
  9. Driver Seat Height Adjustment Motor -V245- and Front Passenger Seat Height Adjustment Motor -V246-
    • Driver Seat Height Adjustment Motor -V245- integrated with Driver Seat Height Adjustment Sensor -G231-
  10. Driver Seat Adjustment Control Head -E470- and Front Passenger Seat Adjustment Control Head -E471-
    • Integrated With Adjustment Switches
  11. Driver Seat Lumbar Support Adjustment Switch -E176- and Front Passenger Seat Lumbar Support Adjustment Switch -E177-
  12. Driver Seat Angle Adjustment Motor -V243- and Front Passenger Seat Angle Adjustment Motor -V244-
    • Driver Seat Angle Adjustment Motor -V243- Integrated With Driver Seat Tilt Adjustment Sensor -G232-
  13. Memory Seat/Steering Column Adjustment Control Head
    • Modules Located Under The Front Seat Attached To A Bracket

    Vehicles With Seat Memory:

    • Memory Seat/Steering Column Adjustment Control Module -J136-
    • Passenger Memory Seat Control Module -J521-

    Vehicles With Seat Heating Or Comfort Seat:

    • Left Front Seat Ventilation Control Module -J800- Integrated In The Seat Heating Function → Item  1
    • Right Front Seat Ventilation Control Module -J799- Integrated In The Seat Heating Function → Item  1
