Relay/Fuse Panel B -Sb-: Notes

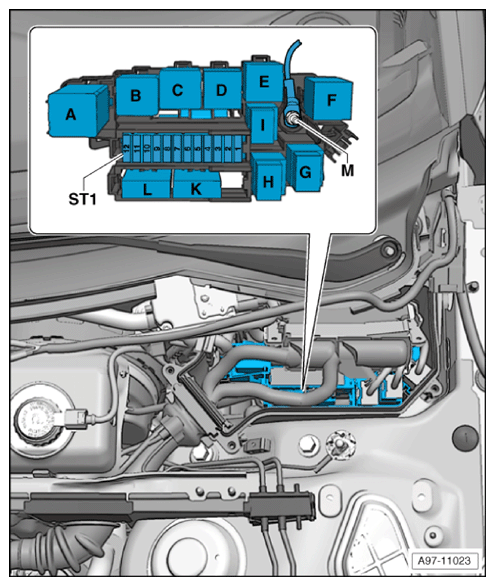

Component Location Relay/Fuse Panel B -Sb- For Models With Left-Hand Drive:
In Electronics Box (In Plenum Chamber, Driver's Side)
NOTE:
- Illustration Shows Models With Left-Hand Drive.
- Illustration For Models With Right-Hand Drive → COMPONENT LOCATION RELAY/FUSE PANEL B -SB- FOR MODELS WITH RIGHT-HAND DRIVE: .
- G - 17-Pin Connector, Red -T17Q-
- H - 17-Pin Connector, White -T17R-
- I - 17-Pin Connector, Brown -T17T-
- M - 501 Threaded Connection 2 (30) On Relay Panel
