Airbag Control Module -J234-
Airbag Control Module -J234-

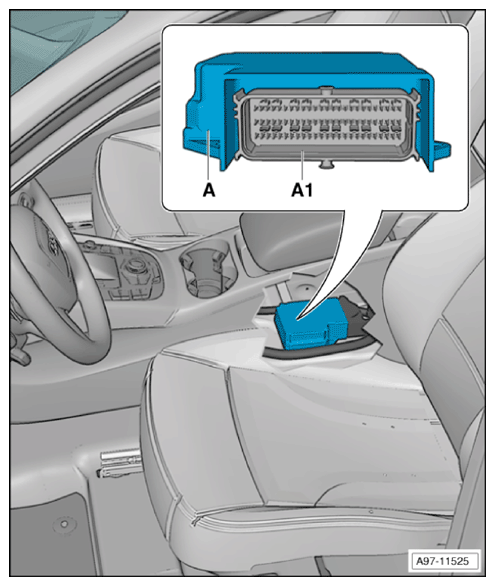

Component Location:
Below Center Console.
A
- Airbag Control Module -J234-
A1
- 100-Pin Connector -T100-
