All-Wheel Drive Control Module -J492-

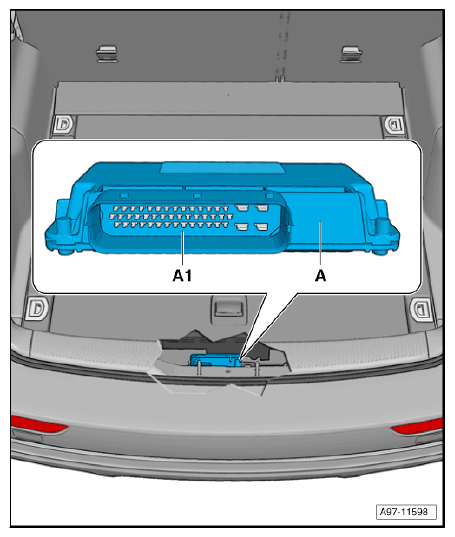

Component Location:

In Spare Tire Well, Behind Battery -A-.

  1. A  - All-Wheel Drive Control Module -J492-
  2. A1  - 47-Pin Connector -T47b-
G12779099Courtesy of AUDI OF AMERICA, LLC
