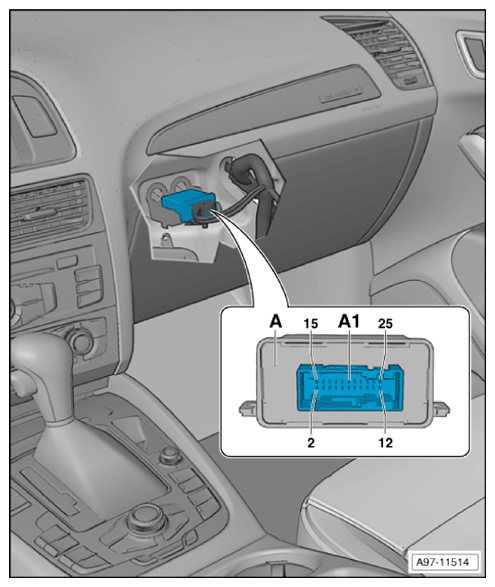

Headlamp Range Control Module -J431-/Headlamp Range/Cornering Lamp Control Module -J745-
Component Location:
In Front Passenger's Footwell, Behind Glove Compartment
- A
- Headlamp Range Control Module -J431-/Headlamp Range/Cornering Lamp Control Module -J745-
Connector On Headlamp Range Control Module -J431-:
- A1
- 26-Pin Connector -T26a-
Connector On Headlamp Range/Cornering Lamp Control Module -J745-:
- A1 - 26-Pin Connector -T26b-
