Radio -R- (With Integrated Cd Changer -R41-/DVD Changer -R161-)

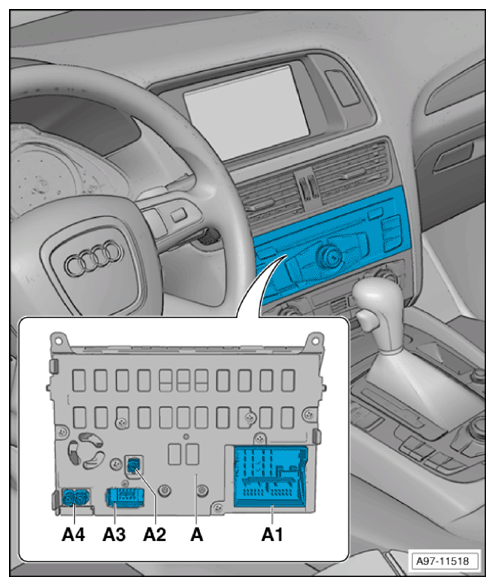

Component Location:

In Middle Part Instrument Panel.

1. A  - Radio -R-
2. A1  - Connector block, composed of:
   • 8-Pin Connector, brown -T8k-
   • 8-Pin Connector, black -T16l-
   • 12-Pin Connector, green -T12a-
   • 12-Pin Connector, blue -T12s-
3. A2  - Single Connector, black -T1i- (DAB Connector)/Single Connector, green -T1k- (SDARS Connector)
4. A3  - 10-Pin Connector, black -T10v- (Display Unit Connector)
5. A4  - Double Connector, white -T2df- (AM/FM1/FM2 Connector)

Courtesy of AUDI OF AMERICA, LLC
