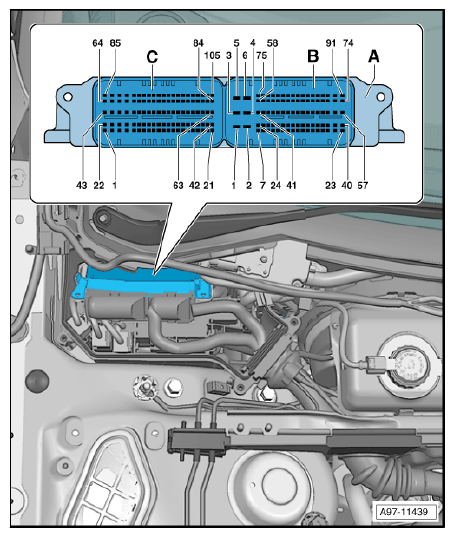

Component Location Engine Control Module (ECM) -J623- For Models With Right-Hand Drive (With -T91- And -T105-):
In Electronics Box (In Plenum Chamber, Driver's Side)
NOTE:
- Illustration Shows Models With Right-Hand Drive.
- Illustration For Models With Left-Hand Drive → COMPONENT LOCATION ENGINE CONTROL MODULE (ECM) -J623- FOR MODELS WITH LEFT-HAND DRIVE (WITH -T91- AND -T105-): .
- Engine Control Module (ECM) -J623-
- 91-Pin Connector -T91-
- 105-Pin Connector -T105-
