Right High-Intensity Gas Discharge Lamp Control Module -J344-, From Model Year 2013
Right High-Intensity Gas Discharge Lamp Control Module -J344-, From Model Year 2013

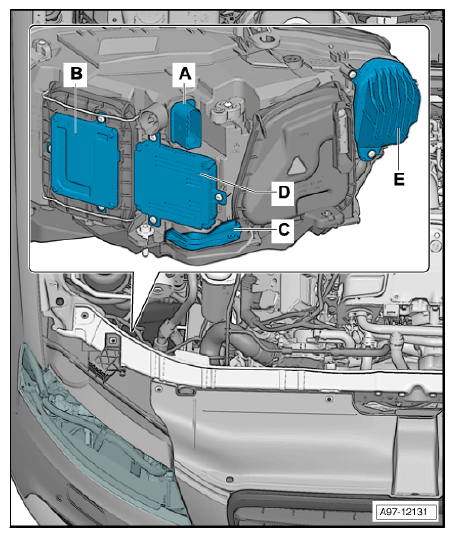

Component Location:
On Right Headlamp.
14-Pin Connector -T14b-
Right Daytime Running Lamp and Parking Light Control Module -J861-
Right Headlamp Power Output Stage -J668-
Right High-intensity Gas Discharge Lamp Control Module -J344-
Right LED Parking Lamp/DRL Module -L177-
Courtesy of AUDI OF AMERICA, LLC
