Structure-Borne Sound Control Module -J869-
Structure-Borne Sound Control Module -J869-

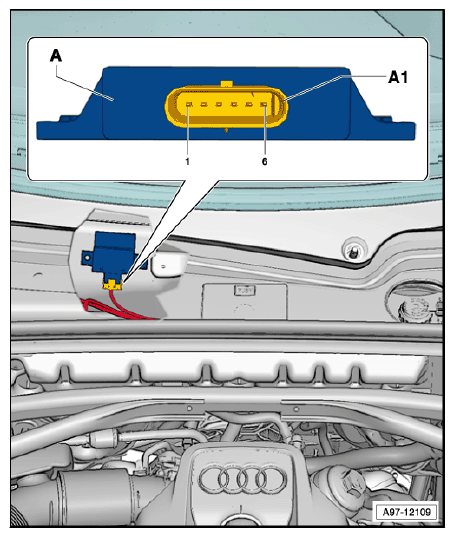

Component Location:
In Plenum Chamber.
A
- Structure-Borne Sound Control Module -J869-
A1
- 6-Pin Connector -T6s-
Courtesy of AUDI OF AMERICA, LLC
