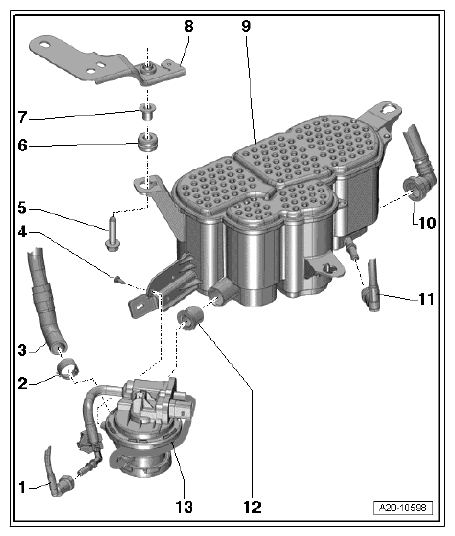

EVAP Canister Overview: Notes

1. 9  - EVAP Canister
   • Located At The Bottom Of Spare Wheel Well
2. 13  - Leak Detection Pump (LDP) -V144-
   • Located On The Vehicle Floor Under The Rear Left Floor Panel

Courtesy of AUDI OF AMERICA, LLC

For 2.0L Gasoline Engine
