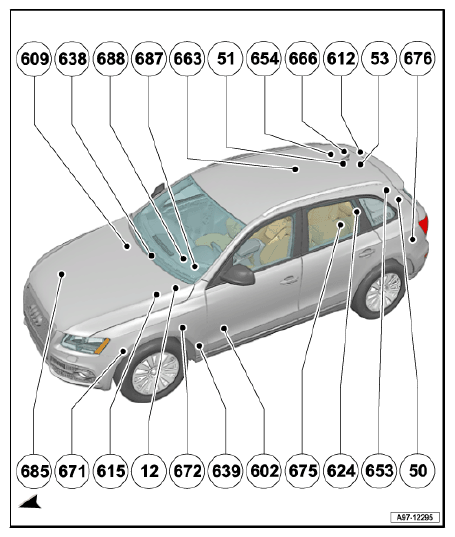

Overview Of Ground Connections: Notes

1. 609  - Ground Connection (in plenum chamber, right)
   • Component Location: → 12 - GROUND CONNECTION (IN ENGINE COMPARTMENT, LEFT)
2. 638  - Ground Connection (on right A-pillar)
   • Component Location: → 638 - GROUND CONNECTION (ON RIGHT A-PILLAR)
3. 688  - Ground Connection 2 (on center tunnel)
   • Component Location: → 688 - GROUND CONNECTION 2 (ON CENTER TUNNEL)
4. 687  - Ground Connection 1 (on center tunnel)
   • Component Location: → 638 - GROUND CONNECTION (ON RIGHT A-PILLAR)
5. 663  - Ground Connection (in right rear side panel)
   • Component Location: → 688 - GROUND CONNECTION 2 (ON CENTER TUNNEL)
6. 51  - Ground Connection (in luggage compartment, right)
   • Component Location: → 50 - GROUND CONNECTION (IN LUGGAGE COMPARTMENT, LEFT)
7. 654  - Ground Connection (on right D-pillar)
   • Component Location: → 50 - GROUND CONNECTION (IN LUGGAGE COMPARTMENT, LEFT)
8. 666  - Ground Connection (on right rear roof)
   • Component Location: → 675 - GROUND CONNECTION 2 (IN LUGGAGE COMPARTMENT, RIGHT) -ARROW-
9. 612  - Ground Connection (in rear lid, center)
   • Component Location: → 53 - GROUND CONNECTION (IN REAR LID, RIGHT)
10. 53  - Ground Connection (in rear lid, right)
    • Component Location: → 53 - GROUND CONNECTION (IN REAR LID, RIGHT)

Courtesy of AUDI OF AMERICA, LLC

1. 676  - Ground Connection 2 (in left luggage compartment)
   • Component Location: → 676 - GROUND CONNECTION 2 (IN LUGGAGE COMPARTMENT, LEFT) -ARROW-
2. 50  - Ground Connection (in luggage compartment, left)
   • Component Location: → 50 - GROUND CONNECTION (IN LUGGAGE COMPARTMENT, LEFT)
3. 653  - Ground Connection (on left D-pillar)
   • Component Location: → 676 - GROUND CONNECTION 2 (IN LUGGAGE COMPARTMENT, LEFT) -ARROW-
4. 624  - Ground Connection (near starter battery)
   • Component Location for models without High-Voltage System (Hybrid): → 624 - GROUND CONNECTION (NEAR STARTER BATTERY)
   • Component Location for models with High-Voltage System (Hybrid): → 624 - GROUND CONNECTION (NEAR STARTER BATTERY)
5. 675  - Ground Connection 2 (in right luggage compartment)
   • Component Location: → 675 - GROUND CONNECTION 2 (IN LUGGAGE COMPARTMENT, RIGHT) -ARROW-
6. 602  - Ground Connection (in front left footwell)
   • Component Location: → 602 - GROUND CONNECTION (IN FRONT LEFT FOOTWELL) -ARROW-
7. 639  - Ground Connection (on left A-pillar)
   • Component Location: → 602 - GROUND CONNECTION (IN FRONT LEFT FOOTWELL) -ARROW-
8. 672  - Ground Connection 2 (on left front long member)
   • Component Location: → 685 - GROUND CONNECTION 1 (ON RIGHT FRONT LONG MEMBER)
9. 12  - Ground Connection (in engine compartment, left)
   • Component Location: → 12 - GROUND CONNECTION (IN ENGINE COMPARTMENT, LEFT)

Courtesy of AUDI OF AMERICA, LLC

1. 615  - Ground Connection, on left suspension strut
   • Component Location: → 671 - GROUND CONNECTION 1 (ON LEFT FRONT LONG MEMBER)
2. 671  - Ground Connection 1 (on left front long member)
   • Component Location: → 671 - GROUND CONNECTION 1 (ON LEFT FRONT LONG MEMBER)
3. 685  - Ground Connection 1 (on right front long member)
   • Component Location: → 685 - GROUND CONNECTION 1 (ON RIGHT FRONT LONG MEMBER)

Courtesy of AUDI OF AMERICA, LLC
