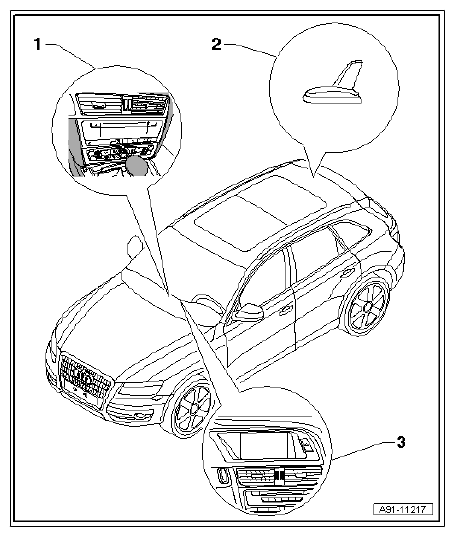

Navigation System Overview

  1. Information Electronics Control Module 1 -J794-
    • Located At The Top Center Console
  2. Roof Antenna -R216-
  3. Front Information Display Control Head -J685-
    • Located In The Center Of Instrument Panel
G12779291Courtesy of AUDI OF AMERICA, LLC
