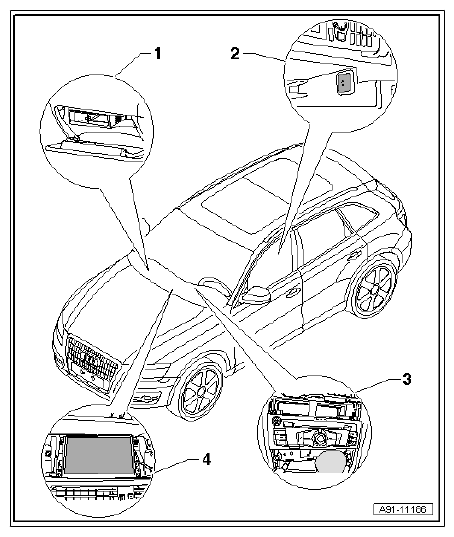

Radio System Component Overview

1. External Audio Source Connection -R199-
   • Located In The Glove Compartment
   • AMI
2. External Audio Source Connection -R199-
   • Located In The Center Console Storage Compartment
   • AUX IN
3. Radio -R-
   • Located At The Top Center Console
4. Front Information Display Control Head -J685-

Courtesy of AUDI OF AMERICA, LLC
