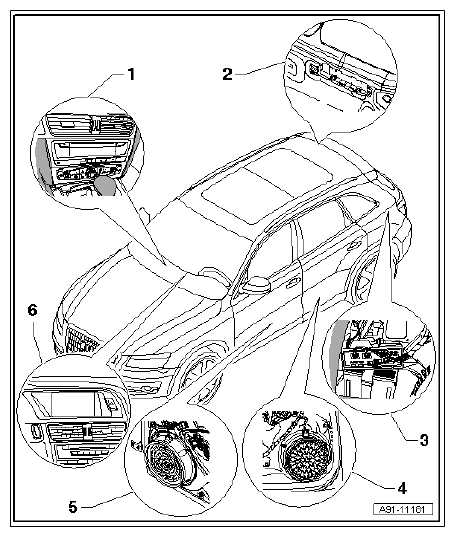

TV System Overview
- Information Electronics Control Module 1 -J794-
- Located At The Top Center Console
- Antenna Amplifier
- TV Tuner -R78-
- Located Behind The Luggage Compartment Left Side Trim
- Speakers In Rear Doors
- Speakers In Front Doors
- Front Information Display Control Head -J685-
- Located In The Center Of Instrument Panel
