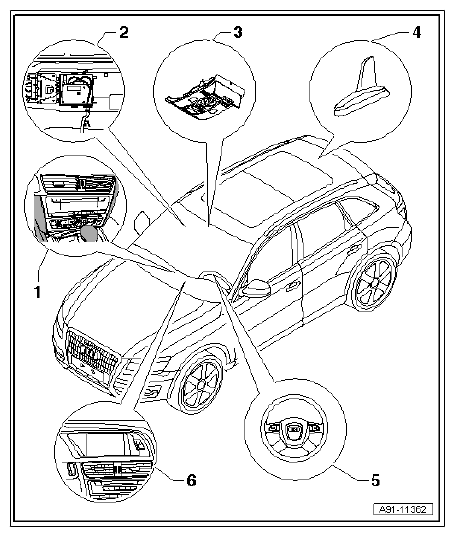

Telephone System Overview
Components A - B Are Not Shown In The Overview
- A
- Telephone Amplifier -R86-
- Located In The Right Luggage Compartment Behind The Side Panel
- B
- Telephone Baseplate -R126-
- Installed In The Center Console
- 1
- Information Electronics Control Module 1 -J794-
- Integrated With Bluetooth Antenna -R152-
- MMI
- Located At The Top Center Console
- 2
- Telephone Transceiver -R36-
- Under Front Right Seat
- 3
- Microphone Unit (in front roof module) -R164-
- Integrated With Left Front Microphone -R140-, Right Front Microphone -R141- And Inside Microphone -R74-
- Installed In The Front Interior Lamp
- 4 - Roof antenna -R216-
- 5 - Multifunction Steering Wheel
- 6
- Front Information Display Control Head -J685-
- Located In The Center Of Instrument Panel
