Sunroof Assembly Overview

  1. 1  - Power Sunroof Control Module -J245-
    • Integrated With Sunroof Motor -V1-
  2. 2  - Assembly Frame
  3. 7  - Rear Glass Panel
  4. 8  - Front Glass Panel
  5. 10  - Roof Blind Control Module -J394-
    • Integrated With Sunroof Blind Motor -V260-
  6. 13  - Sun Shade

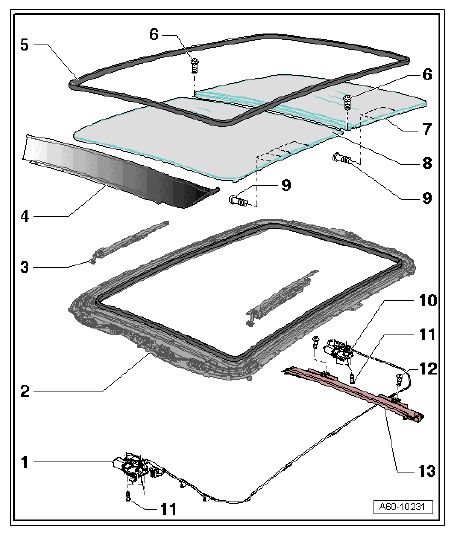

G12779327Courtesy of AUDI OF AMERICA, LLC
