Ignition Coils: Removing

-- Remove the engine covers -1- and -2- upward.

Fig 1: Engine Covers -1- And -2-

Courtesy of AUDI OF AMERICA, LLC

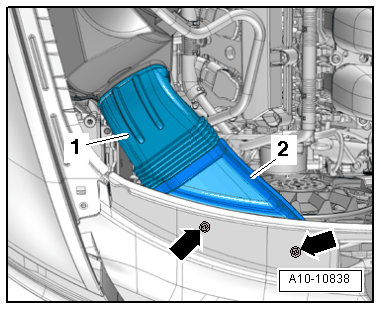

-- Remove the bolts -arrows-, remove the air guides -1- and -2-.

Fig 2: Locating Air Guides -1- And -2-

Courtesy of AUDI OF AMERICA, LLC

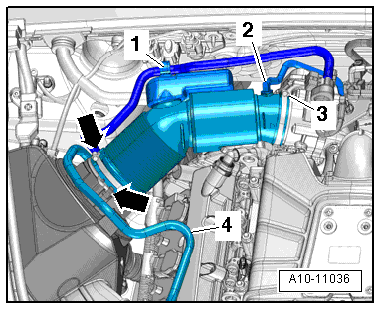

-- Free up the fuel line -4- and hose connection -1- from the EVAP canister on the air filter housing and on the air guide tube.

Fig 3: Freeing Up Fuel Line From Air Guide Hose

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vacuum hose -2- from the air guide hose connection.

-- Remove the air guide pipe by loosening the hose clamp -3- and opening the clips -arrows-.

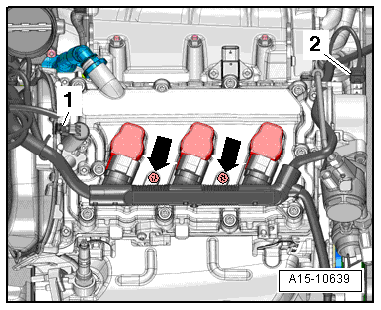

-- Remove the bolts -arrows- and disconnect the connectors on the ignition coils.

Fig 4: Camshaft Position Sensor And Exhaust Camshaft Control Valve Cylinder Bank 1 (Right)

Courtesy of AUDI OF AMERICA, LLC

-- Lay the electrical wiring harness down slightly.

NOTE:

Ignore -1 and 2-.

Cylinder Bank 2 (left):

Fig 5: View Of Coolant Hoses At Coolant Expansion Tank

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolt -arrow-.

-- Disconnect the electrical connector to the engine coolant level warning switch -F66- on the bottom of the coolant reservoir and lay the reservoir aside with the coolant hoses -1- and -2- attached.

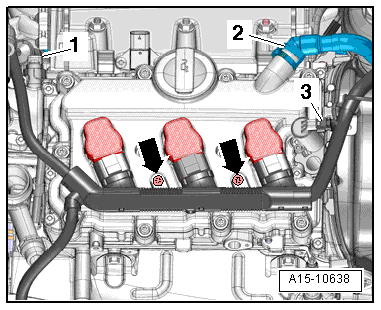

-- Remove the bolts -arrows- and disconnect the connectors on the ignition coils.

Fig 6: CMP Sensor And Exhaust Camshaft Control Valve Cylinder Bank 2 (Left)

Courtesy of AUDI OF AMERICA, LLC

-- Lay the electrical wiring harness down slightly.

NOTE:

Ignore -1, 2 and 3-.

Continued for Both Sides:

Fig 7: Removing Ignition Coils Using Ignition Coil Puller T40039

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ignition coils with the T40039.
