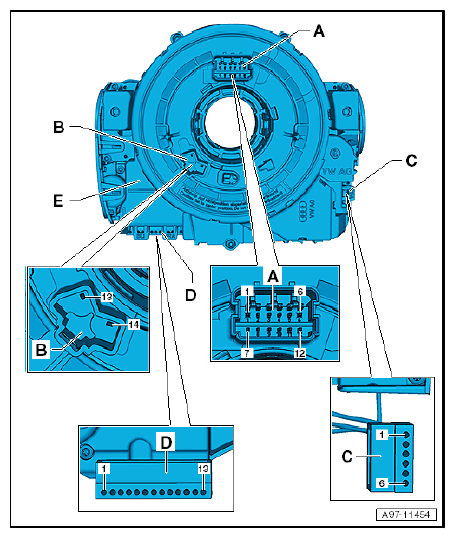

Front Side

  1. 12-Pin Connector -T12V-, Black
  2. Double Connector -T2DM-, Black
  3. 6-Pin Connector -T6M-, Black
  4. 13-Pin Connector -T13B-, Black
  5. Steering Column Electronic Systems Control Module -J527-
    • with turn signal switch -E2-, headlamp flasher switch -E5-, cruise control switch -E45-, windshield wiper Intermittent switch -E22-, steering angle sensor -G85-, spiral spring -F350-, Steering Wheel Heating Button -E522-, Steering Column Adjustment Switch -E167-, directional stabilization assistance button -E517-, airbag spiral spring/return spring with slip ring -F138-
G12770365Courtesy of AUDI OF AMERICA, LLC
