Component Location Comfort System Central Control Module 2 -J773-, From Model Year 2014: Notes

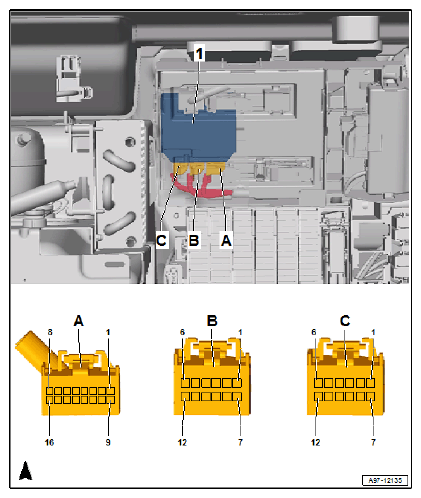

Component Location
In Luggage Compartment Right, On Rear Wall -1-.
- 1
- Comfort System Central Control Module 2 -J773-
- A
- 16-Pin Connector -T16O-, Brown
- B
- 12-Pin Connector -T12AG-, Brown
- C
- 12-Pin Connector -T12AH-, Black
 Courtesy of AUDI OF AMERICA, LLC
|
