Component Location Camera Control Module -J852-

Component Location

On Upper Windshield, Center -1-.

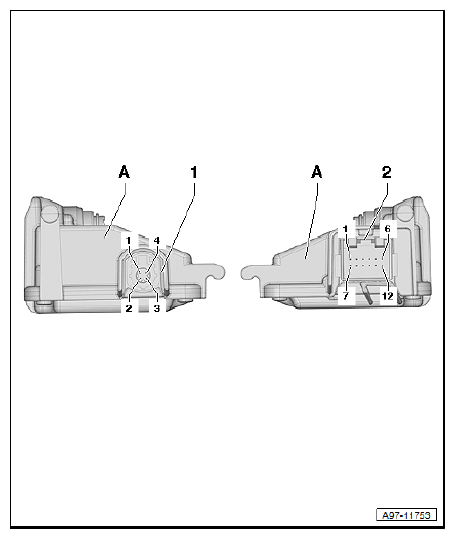

Pin Connectors

Courtesy of AUDI OF AMERICA, LLC

1. A  - Camera Control Module -J852-
2. 1  - 5-Pin Connector -T5m-, black, Image Processing Control Module -J851-
3. 2  - 12-Pin Connector -T12o-, black

Courtesy of AUDI OF AMERICA, LLC
