Component Location NOX Sensor Control Module -J583-, V6 TDI: Notes

Component Location

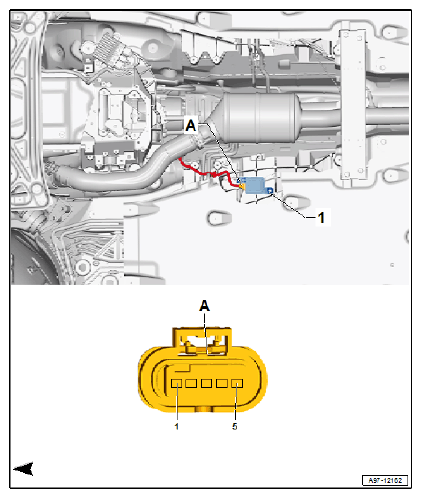

On Right Front Underbody -1-.

  1. 1  - NOX Sensor Control Module -J583-
  2. A  - 5-Pin Connector -T5AW-, Black
G12770380Courtesy of AUDI OF AMERICA, LLC
