Component Location Towing Recognition Control Module -J345-, From Model Year 2014: Notes

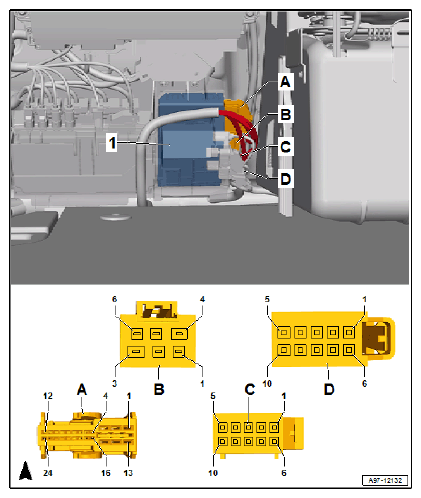

Component Location
In Luggage Compartment Left, On Rear Wall -1-.
- 1
- Towing Recognition Control Module -J345-
- A
- 24-Pin Connector -T24A-, Black
- B
- 6-Pin Connector -T6BZ-, Black
- C
- 10-Pin Connector -T10BG-, Black
- D
- 10-Pin Connector -T10BF-, Red
