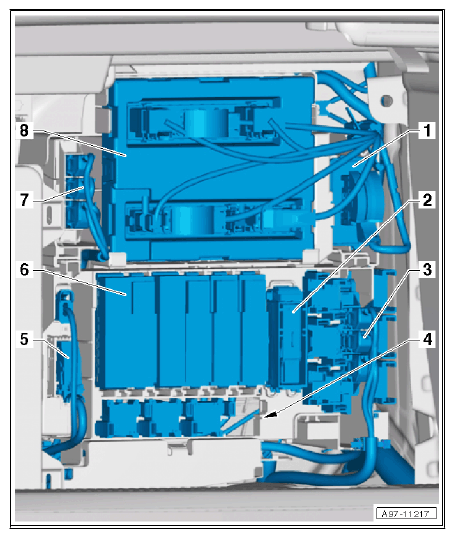

Control Modules In Right Luggage Compartment, Through Model Year 2013
In Luggage Compartment Right, On Rear Wall
- Headlamp Range Control Module -J431-
- Components: -J431-, -J745- (only models with cornering lamp)
- Component Location and Connectors → COMPONENT LOCATION HEADLAMP RANGE CONTROL MODULE -J431-/HEADLAMP RANGE/CORNERING LAMP CONTROL MODULE -J745-, MODELS WITH CORNERING LAMP, THROUGH MODEL YEAR 2013
- Component Location and Connectors, from MY 2014 → COMPONENT LOCATION HEADLAMP RANGE CONTROL MODULE -J431-/HEADLAMP RANGE/CORNERING LAMP CONTROL MODULE -J745-, MODELS WITH CORNERING LAMP, FROM MODEL YEAR 2014
- 46-Pin Connector -T46-, black, CAN Separating Connector
- Parking Aid Control Module -J446-/Parallel Parking Assistance Control Module -J791-
- Component Location and Connectors → PIN ARRANGEMENTS HEADLAMP RANGE CONTROL MODULE -J431-/HEADLAMP RANGE/CORNERING LAMP CONTROL MODULE -J745-
From model year 2014, the Parking aid control module -J446- is being discontinued. The Vehicle electrical control module system -J519- will adopt this functions.
Parallel Parking Assistance Control Module -J791-
- Component Location and Connectors, from MY 2014 → COMPONENT LOCATION PARALLEL PARKING ASSISTANCE CONTROL MODULE -J791-, FROM MODEL YEAR 2014
- 4
- Level Control System Control Module -J197-
- Component Location and Connectors → COMPONENT LOCATION LEVEL CONTROL SYSTEM CONTROL MODULE -J197-, THROUGH MODEL YEAR 2013
- Component Location and Connectors, from MY 2014 → COMPONENT LOCATION LEVEL CONTROL SYSTEM CONTROL MODULE -J197-, FROM MODEL YEAR 2014
- 5
- Data Bus On Board Diagnostic Interface -J533-
- Component Location and Connectors → COMPONENT LOCATION DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533-, THROUGH MODEL YEAR 2013
- Component Location and Connectors, from MY 2014 → COMPONENT LOCATION DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533-, FROM MODEL YEAR 2014
- 6 - Relay and fuse carrier luggage compartment, right
- 7
- Comfort System Central Control Module 2 -J773-
- Component Location and Connectors → COMPONENT LOCATION COMFORT SYSTEM CENTRAL CONTROL MODULE 2 -J773-, THROUGH MODEL YEAR 2013
- Component Location and Connectors, from MY 2014 → COMPONENT LOCATION COMFORT SYSTEM CENTRAL CONTROL MODULE 2 -J773-, FROM MODEL YEAR 2014
- 8
- Comfort System Central Control Module -J393-
- Component Location and Connectors → COMPONENT LOCATION COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, THROUGH MODEL YEAR 2013
- Component Location and Connectors, from MY 2014 → COMPONENT LOCATION COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, FROM MODEL YEAR 2014
