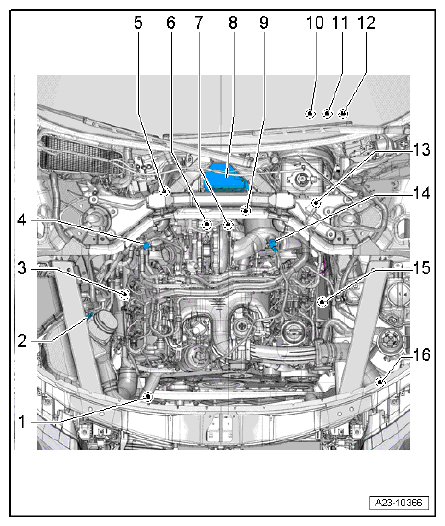

Engine Front View
- Oil level thermal sensor -G266-
- Map controlled engine cooling thermostat -F265- → CAMSHAFT POSITION SENSOR -G40-
- Oil temperature sensor 2 -G664- → CHARGE AIR PRESSURE SENSOR -G31-/INTAKE AIR TEMPERATURE SENSOR -G42-
- Oil pressure switch -F22-
- Reduced oil pressure switch -F378-
- EGR cooler switch-over valve -N345-
- Intake Flap Motor -V157-
- Throttle valve control module -J338-
- Engine temperature control sensor -G694- → CHARGE AIR PRESSURE SENSOR -G31-/INTAKE AIR TEMPERATURE SENSOR -G42-
- Oil pressure regulation valve -N428- → UNDER THE INTAKE MANIFOLD LOWER SECTION, CYLINDER BANK 1 (RIGHT)
