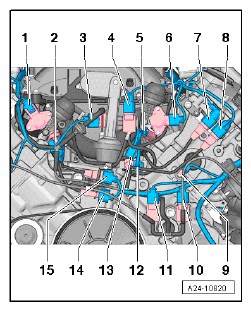

Components On The Front Of The Engine

  1. Intake Manifold Runner Position Sensor -G336-
  2. Fuel Pressure Sensor -G247-
  3. Manifold Absolute Pressure (MAP) Sensor -G71- with Intake Air Temperature (IAT) Sensor -G42-
  4. Intake Manifold Tuning (IMT) Valve -N156-
  5. Electrical connector For Cylinder 5 Fuel Injector -N83-
  6. Intake Manifold Runner Position Sensor 2 -G512-
  7. Electrical connector for Knock Sensor 3 -G198-
  8. Electrical connector for Knock Sensor 4 -G199-
  9. Engine Temperature Control Temperature Sensor -G694-
  10. Secondary Air Injection (AIR) Solenoid Valve 2 -N320-
  11. Secondary Air Injection (AIR) Solenoid Valve -N112-
  12. Intake Manifold Runner Control (IMRC) Valve -N316-
  13. Oil Pressure Switch -F22-
  14. Electrical connector for Knock Sensor 2 -G66-
  15. Electrical connector for Knock Sensor 1 -G61-
G12770651Courtesy of AUDI OF AMERICA, LLC
