Engine Overview Part II

  1. Ignition Coil 1 With Power Output Stage -N70-
  2. Ignition Coil 2 With Power Output Stage -N127-
  3. Ignition Coil 3 With Power Output Stage -N291-
  4. Ignition Coil 4 With Power Output Stage -N292-
  5. Ignition Coil 5 With Power Output Stage -N323-
  6. Ignition Coil 6 With Power Output Stage -N324-
  7. Exhaust Camshaft Adjustment Valve 1 -N318-
  8. Camshaft Adjustment Valve 1 -N205-
  9. Cylinder 4 Fuel Injector -N33-
  10. Cylinder 5 Fuel Injector -N83-
  11. Cylinder 6 Fuel Injector -N84-
  12. Fuel Pressure Sensor -G247-
  13. Fuel Pressure Sensor 2 -G624-
  14. Low Fuel Pressure Sensor -G410-
  15. Cylinder 12 Fuel Injector -N302-
  16. Cylinder 11 Fuel Injector -N301-
  17. Cylinder 10 Fuel Injector -N300-
  18. Camshaft Adjustment Valve 2 -N208-
  19. Exhaust Camshaft Adjustment Valve 2 -N319-
  20. Ignition Coil 12 With Power Output Stage -N330-
  21. Ignition Coil 11 With Power Output Stage -N329-
  22. Ignition Coil 10 With Power Output Stage -N328-
  23. Ignition Coil 9 With Power Output Stage -N327-
  24. Ignition Coil 8 With Power Output Stage -N326-
  25. Ignition Coil 7 With Power Output Stage -N325-
  26. Cylinder 9 Fuel Injector -N299-
  27. Cylinder 8 Fuel Injector -N86-
  28. Cylinder 7 Fuel Injector -N85-

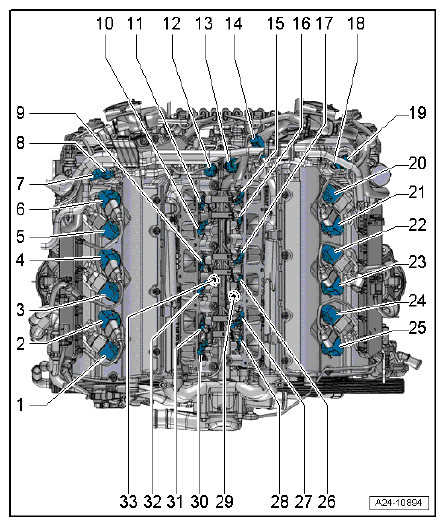

    G12770662Courtesy of AUDI OF AMERICA, LLC
  29. Knock Sensor 2 -G66-
  30. Cylinder 1 Fuel Injector -N30-
  31. Cylinder 2 Fuel Injector -N31-
  32. Cylinder 3 Fuel Injector -N32-
  33. Knock Sensor 3 -G198-
