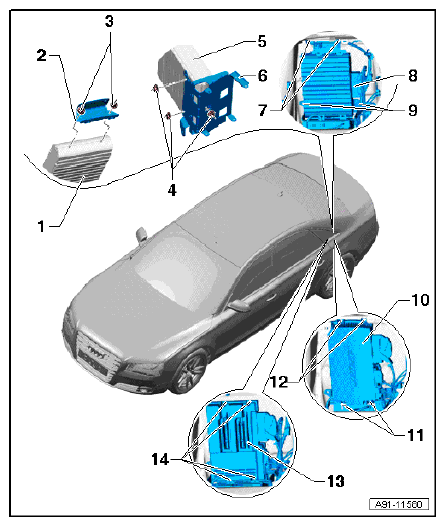

Sound System Control Module Overview

1. Digital sound system control module 2 -J787- (Bang & Olufsen®)
2. Bracket
3. Nut
4. Nut
5. Digital sound system control module 2 -J787- (Bang & Olufsen®)
6. Bracket
7. Nut
8. Digital sound system control module 2 -J787- (Bang & Olufsen®)
9. Nut
11. Screw
12. Nut
13. Digital sound system control module -J525- (Bang & Olufsen®)
14. Screw

Courtesy of AUDI OF AMERICA, LLC
