Front Level Control System Sensor: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2011 Audi A6, 2010 Audi A6, 2009 Audi A6, 2008 Audi A6, and 2007 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the harness connector -3-.

-- Remove hex nut -2-.

-- Remove hex bolt -1-.

-- Remove level control system sensor.

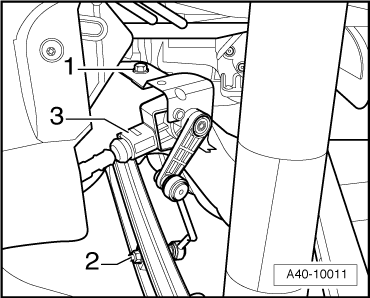

Fig 1: Identifying Harness Connector, Hex Nut, And Hex Bolt

Courtesy of AUDI OF AMERICA, LLC
