ABS Control Module Connector End View (J104, T47)

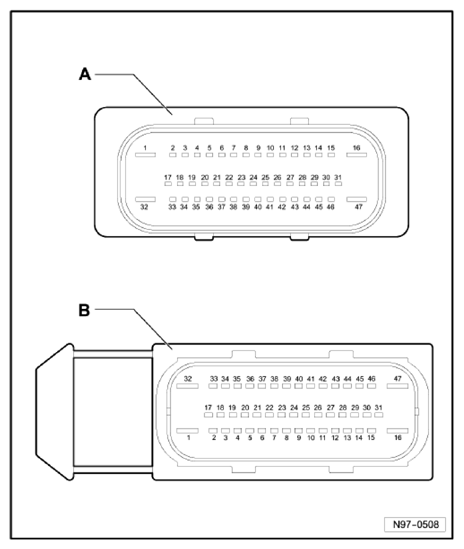

Fig 1: ABS Control Module Connector End View (J104, T47)

G10359860

A	ABS Control Module -J104-
B	47-Pin Connector -T47-, black on wiring harness
