Engine Control Module (ECM) Connector End View (J623, T81, T40)

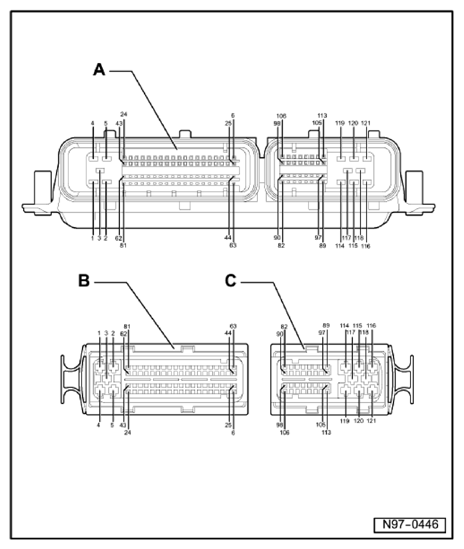

Fig 1: Engine Control Module (ECM) Connector End View (J623, T81, T40)

Courtesy of AUDI OF AMERICA, LLC

A	Engine Control Module (ECM) -J623- Connector
B	81-Pin Connector-T81-
C	40-Pin Connector -T40-

NOTE: T121-consists of items B and C
