Vehicle Positioning System Interface Control Module -J843-, Removing And Installing: Installing

• Tightening specification. Refer to Fig 1.

Install in reverse order of removal.

Frame tightening specification for Towing Recognition Control ModuleJ345, Vehicle Positioning System Interface Control ModuleJ843

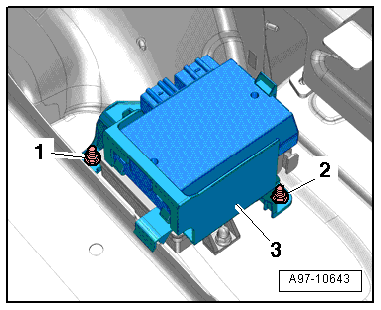

Fig 1: Towing Recognition Control Module -J345- Retaining Frame, Tightening Specifications

Courtesy of AUDI OF AMERICA, LLC

1. Nut - 3 Nm
2. Nut - 3 Nm
3. Frame
