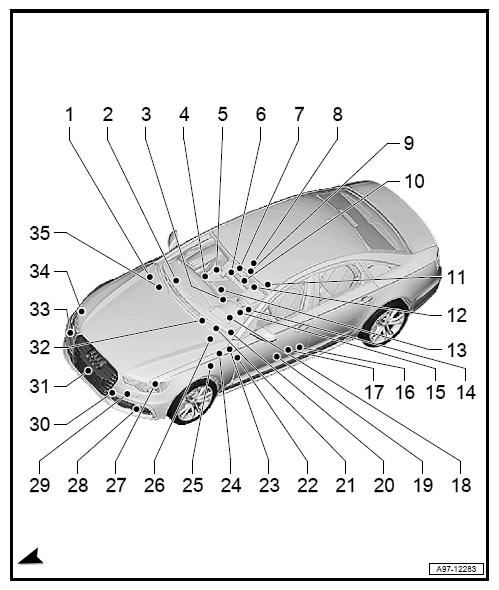

Vehicle Front Modules Overview

For vehicles with High Voltage system 0K3 refer to

1. → "VEHICLE FRONT MODULES OVERVIEW, HIGH VOLTAGE VEHICLES (0K3) FROM KW 47/2016 "
2. 1 - → "STRUCTURE-BORNE SOUND CONTROL MODULE J869 "
3. 2 - → "FRESH AIR BLOWER CONTROL MODULE J126 "
4. 2 - → "CONTROL MODULE FOR EMERGENCY CALL MODULE AND COMMUNICATION UNIT J949 "
5. 3 - → "INSTRUMENT CLUSTER CONTROL MODULE J285 "
6. 4 - → "IMAGE PROCESSING CONTROL MODULE J851 "
7. 5 - → "CLIMATRONIC CONTROL MODULE J255 "
8. 5 - → "TIRE PRESSURE MONITORING CONTROL MODULE J502 "
   • for RS models only
9. 6 - → "CAMERA CONTROL MODULE J852 "
10. 7 - → "POWER SUNROOF CONTROL MODULE J245 "
11. 8 - → "ROOF ELECTRONICS CONTROL MODULE J528 "
12. 9 - → "AUTOMATIC DIMMING INTERIOR REARVIEW MIRROR Y7 "
13. 10 - → "AUTOMATIC DIMMING INTERIOR REARVIEW MIRROR Y7 "
14. 11 - → "AIRBAG CONTROL MODULE J234 "
15. 12 - → "POWER SUNROOF CONTROL MODULE J245, PANORAMA SUNROOF "
16. 13 - → "SENSOR ELECTRONICS CONTROL MODULE J849 "
17. 13 - → "CONTROL MODULE FOR INFORMATION ELECTRONICS 1 J794 "
18. 14 - → "STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE J527 "
19. 15 - → "ACTIVE STEERING MOTOR V477 "
20. 16 - → "LEFT FRONT SEAT BELT TENSIONER CONTROL MODULE J854/RIGHT FRONT SEAT BELT TENSIONER CONTROL MODULE J855 "
21. 16 - → "MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE J136 "
22. 16 - → "PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE J706 "

    Courtesy of AUDI OF AMERICA, LLC

23. 17 - → "NIGHT VISION SYSTEM CONTROL MODULE J853 "
24. 18 - → "POWER ADJUSTABLE STEERING COLUMN CONTROL MODULE J866 "
25. 19 - → "ACTIVE STEERING CONTROL MODULE J792 "
26. 20 - → "ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE J764 "
27. 21 - → "WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE J898 "
28. 22 - → "16-PIN CONNECTOR T16 DIAGNOSTIC CONNECTOR "
29. 23 - → "HEADLAMP RANGE CONTROL MODULE J431/HEADLAMP RANGE/CORNERING LAMP CONTROL MODULE J745 "
30. 23 - → "HEADLAMP RANGE CONTROL MODULE J431/HEADLAMP RANGE/CORNERING LAMP CONTROL MODULE J745 "
31. 24 - → "VEHICLE ELECTRICAL SYSTEM CONTROL MODULE J519 "
32. 25 - → "ABS CONTROL MODULE J104 "
33. 26 - → "ENGINE CONTROL MODULE (ECM) J623 "
34. 27 - → "LEFT FRONT HEADLAMP MX1/RIGHT FRONT HEADLAMP MX2 "
35. 28 - → "DISTANCE REGULATION CONTROL MODULE 2 J850 "
36. 29 - → "POWER STEERING CONTROL MODULE J500 "
37. 30 - → "GARAGE DOOR OPENER CONTROL MODULE J530 "
38. 31 - → "COOLANT FAN CONTROL MODULE J293 "
39. 32 - → "WIPER MOTOR CONTROL MODULE J400 "
40. 33 - → "DISTANCE REGULATION CONTROL MODULE J428 "
41. 34 - → "AUXILIARY HEATER CONTROL MODULE J364 "
42. 34 - → "SUBFRAME MOUNT CONTROL MODULE J931 "
43. 35 - → "CATALYTIC CONVERTER HEATING CONTROL MODULE 1 J1021 "
