Transmission Identification

The continuously variable automatic transmission "Multitronic 0AW FWD" is installed with different engines. Allocation, refer to TRANSMISSION/ENGINE ALLOCATION .

Code Letters, Location on Transmission

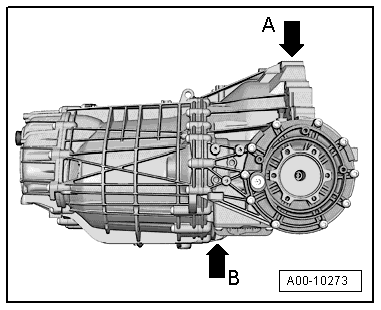

Fig 1: Transmission Identification

Courtesy of AUDI OF AMERICA, LLC

The transmission code and serial number are on the top -arrow A- and the bottom -arrow B- of the transmission housing.

Transmission code and transmission serial number

	3X19163
NDQ	C14	164
14		05080

In this example:

3X19163 : transmission identification number
NDQ : Transmission Code
C14 : Assembly line (not relevant)
164: Serial Number
14 : factory (not relevant)
05080 : Build date: 05 August 2010

NOTE:

The transmission code is also listed on the vehicle data plate.

Vehicle data label location, refer to the appropriate FLUID CAPACITY information .
