Overview Selector Lever Handle

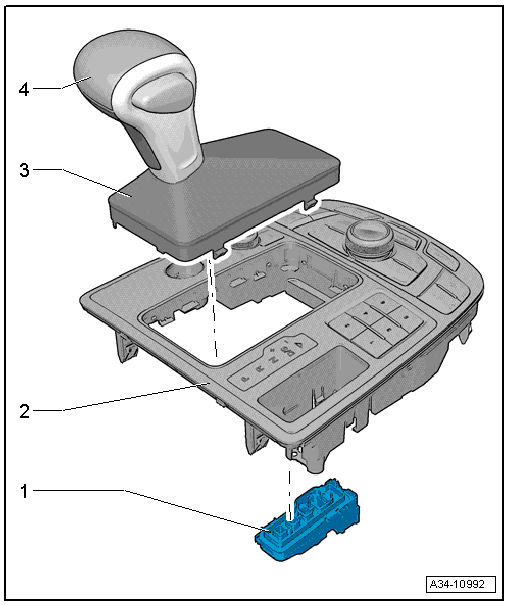

Fig 1: Identifying Selector Lever Handle Overview

Courtesy of AUDI OF AMERICA, LLC

1. Selector Lever Transmission Range Position Display Unit -Y26-
   • Removing and Installing, refer to SELECTOR LEVER TRANSMISSION RANGE POSITION DISPLAY UNIT -Y26- .
2. Multimedia System Control Head -E380-
   • Removing and Installing, refer to MULTIMEDIA SYSTEM CONTROL HEAD -E380-, REMOVING AND INSTALLING .
3. Selector Lever Boot
   • Removing and installing together with the selector lever handle, refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING
4. Selector Lever Handle
   • Removing and installing, refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
