Overview - Subframe Mount

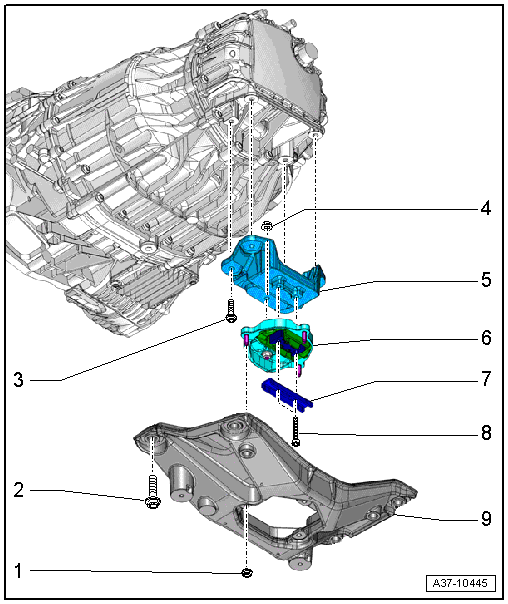

Fig 1: Identifying Tunnel Crossmember, Transmission Mount And Transmission Support Overview

Courtesy of AUDI OF AMERICA, LLC

Nut
- 20 Nm
- Quantity: 3
Bolt
- 70 Nm
- Quantity: 4
Bolt
- 40 Nm
Nut
- 20 Nm
- Quantity: 4
Transmission Support
Transmission Mount
- Removing and Installing, refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Lower Stop
- For the transmission mount
Bolt
- 20 Nm +90°
- Quantity: 2
- Replacing
Tunnel Crossmember
- Removing and installing, refer to TUNNEL CROSSMEMBER, REMOVING AND INSTALLING .
