Component Location Overview - Navigation System

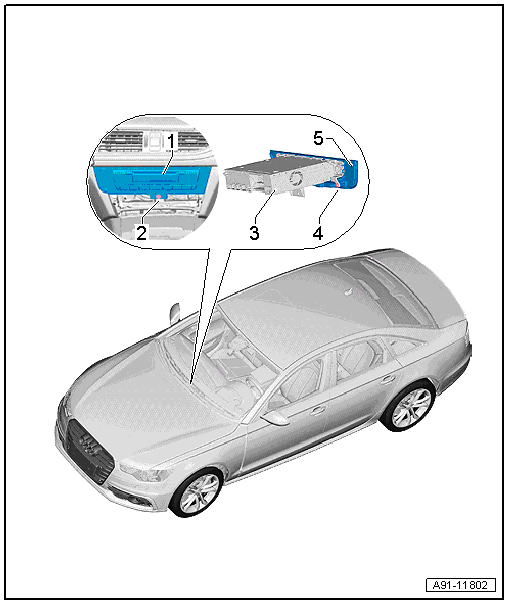

Fig 1: Component Location Overview Of Navigation System

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
   • Navigation connector assignment, 7T2. Refer to NAVIGATION CONNECTOR ASSIGNMENT, 7T2 .
   • Navigation plus connector assignment, 7T6. Refer to appropriate SYSTEM WIRING DIAGRAMS information.
   • Navigation plus connector assignment, 7UG. Refer to appropriate SYSTEM WIRING DIAGRAMS information.
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
2. Bolt
   • 3 Nm
3. Information Electronics Control Module 1 -J794-
4. Bolt
   • 1 Nm
   • Quantity: 4
5. Trim
