Electrical Components Locations & Connector End Views -- A6
›
Comp. LOC. Vehicle Front Modules
›
Windshield Projection Head Up Display Control Module J898
›

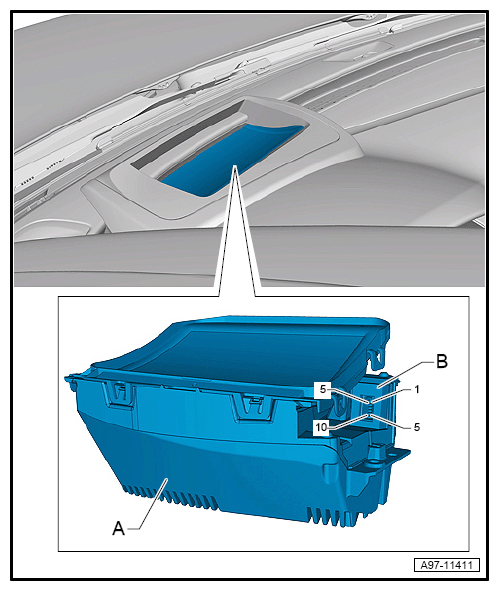

Windshield Projection Head Up Display Control Module -J898-, Location
Windshield Projection Head Up Display Control Module -J898-, Location
Windshield Projection Head Up Display Control Module -J898-
10-Pin Connector -T10g-, black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
