Comp. LOC. Vehicle Front Modules
›
Image Processing Control Module J851
›

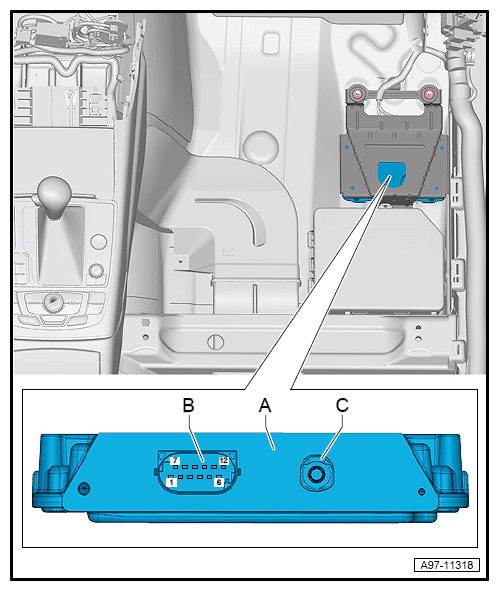

Image Processing Control Module -J851-, Location, LHD
Image Processing Control Module -J851-, Location, LHD
Image Processing Control Module -J851-
12-Pin Connector -T12i-, black
5-Pin Connector -T5i-, black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
