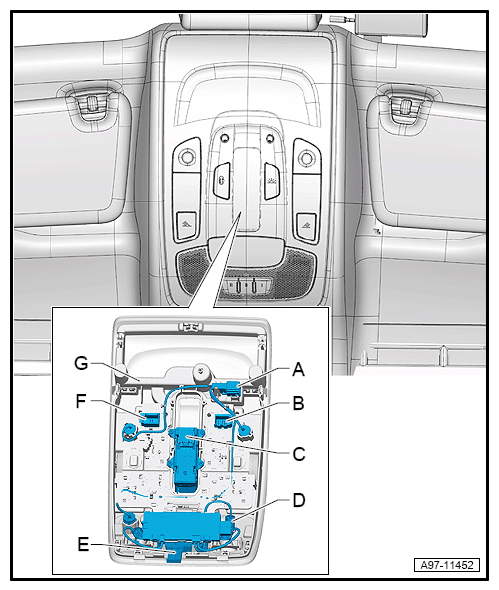

Roof Control Module J528

  1. 6-Pin Connector -T6e-, blue
  2. 10-Pin Connector -T10ab-, red
  3. 5-Pin Connector -T5d-, black
  4. 4-Pin Connector -T4v-, black
  5. 6-Pin Connector -T6f-, black
  6. 10-Pin Connector -T10ac-, black
  7. Roof Electronics Control Module -J528-
G12768128Courtesy of AUDI OF AMERICA, LLC
