Camera Control Module J852
›

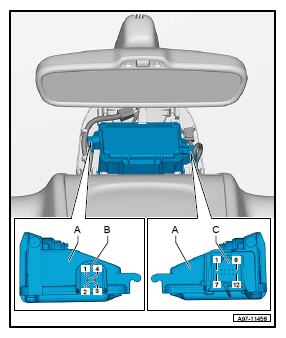

Camera Control Module -J852-, Connector Views
Camera Control Module -J852-, Connector Views
5-Pin Connector -T5c-/12-Pin Connector -T12a-
B - 5-Pin Connector -T5c-, black
C - 12-Pin Connector -T12a-, black
