Control Module For Emergency Call Module And Communication Unit J949
›

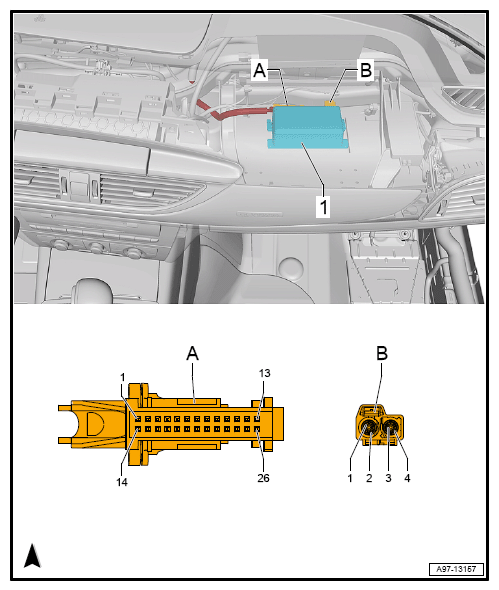

Control Module For Emergency Call Module And Communication Unit -J949-, Location
Control Module For Emergency Call Module And Communication Unit -J949-, Location
1 - Control module for emergency call module and communication unit -J949-
A - 26-Pin Connector -T26c-
B - 4-pin connector -T4gs-
