All-Wheel Drive Control Module Connector End View (J492, T47a)

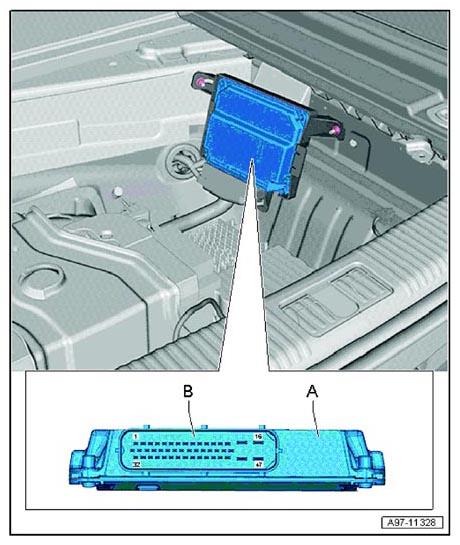

Fig 1: All-Wheel Drive Control Module Connector End View (J492, T47a)
G10360183Courtesy of AUDI OF AMERICA, LLC
A All-Wheel Drive Control Module -J492-
B 47-Pin Connector -T47a-, black
