Distance Regulation Control Module - J428- / Distance Regulation Control Module 2 - J850- Retaining Plate, Removing and Installing: Installing

NOTE:

• Replace the quick release
• The stud bolts in the bracket are pre-set. If necessary, correct the setting.
• If the stud bolts were removed, then the clips on the distance regulation control module must be replaced. Refer to DISTANCE REGULATION CONTROL MODULE - J428- / DISTANCE REGULATION CONTROL MODULE 2 - J850- CLIP, REPLACING .

• Place the control module on a soft and clean surface.
• Measure the dimension -a- at all stud bolts using the Digital Caliper - VAS 6335- and correct if necessary.

• The dimension -a- = 43.3 mm.

Fig 1: Identifying Stud Bolt Dimension -a-

Courtesy of AUDI OF AMERICA, LLC

• Position the retaining plate -2- onto the distance regulation control module -item 3-.
• Carefully press the new quick release -4- onto the stud bolt -2-.
• Turn the quick release clockwise onto the retaining plate to the stop.

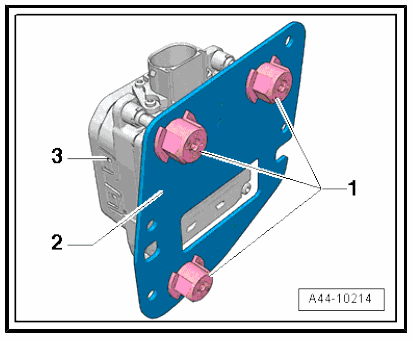

Fig 2: Identifying Distance Regulation Control Module Retaining Plate And Quick Releases
