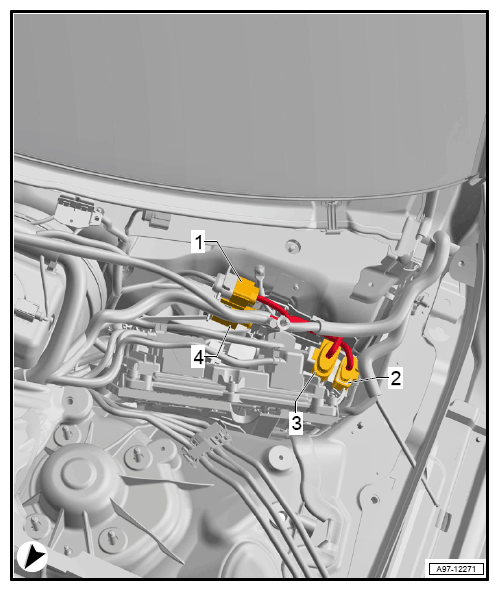

Connector Station Engine Compartment

1. 14-Pin Connector -T14s-, brown
2. 14-Pin Connector -T14t-, black
3. 14-Pin Connector -T14u-, black
4. Double Connector -T2nb-, black

Courtesy of AUDI OF AMERICA, LLC
