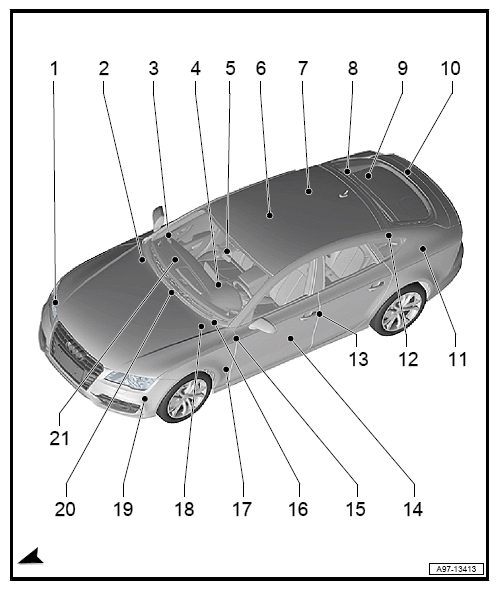

Connector Stations Overview

1. → "COUPLING, FRONT BUMPER  "
2. → "CONNECTOR STATION ON RIGHT A-PILLAR  "
3. → "CONNECTOR STATION, RIGHT FRONT DOOR  "
4. → "CONNECTOR STATION, CENTER TUNNEL, LEFT FRONT  "
5. → "CONNECTOR STATION BELOW FRONT PASSENGER'S SEAT  "
6. → "CONNECTOR STATION, RIGHT REAR DOOR  "
7. → "COUPLING, REAR SEAT, RIGHT  "
8. → "CONNECTOR STATION, RELAY AND FUSE CARRIER IN LUGGAGE COMPARTMENT, RIGHT  "
9. → "CONNECTOR STATION, RIGHT REAR BUMPER  "
10. → "REAR SPOILER COUPLING  "
11. → "COUPLING, REAR SEAT, LEFT  "
12. → "ANC MICROPHONES COUPLING  "
13. → "CONNECTOR STATION, LEFT REAR DOOR  "
14. → "CONNECTOR STATION BELOW DRIVER'S SEAT  "
15. → "CONNECTOR STATION LEFT FRONT DOOR  "
16. → "CONNECTOR STATION ENGINE COMPARTMENT  "
17. → "CONNECTOR STATION ON LEFT A-PILLAR  "
18. → "CONNECTOR STATION IN ELECTRONICS BOX, PLENUM CHAMBER  "
19. → "COUPLING, FRONT BUMPER  "
    • From model year 2015
20. 20 - → "COUPLING, FRONT BUMPER  "
    • Through model year 2014
21. 21 - → "CONNECTOR STATION BEHIND GLOVE COMPARTMENT  "
