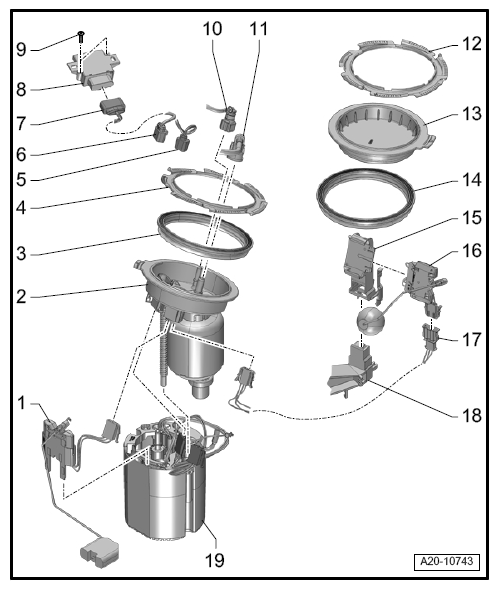

Fuel Pump And Sensors

  1. 1 - Fuel level sensor -G-
  2. 8 - Fuel pump control module J538
  3. 16 - Fuel level sensor 2 -G169-
  4. 19 - Transfer fuel pump -G6-
G12768401Courtesy of AUDI OF AMERICA, LLC
